Pet Supplies Plastic Parts: Success Cases
From Materials · Molds · Injection Molding · Process — Comprehensive Solutions for Pet Products
Material Selection
Safe, food-grade compliant materials for pet safety
Precision Mold
High-precision mold design and manufacturing
Advanced Molding
Precise process control for stable mass production
Quality Assurance
Full-process QC meeting global pet product standards
01 / 05
Pet Travel Crate
Safe, Durable, Well-Ventilated
The pet travel crate demands high strength, impact resistance, low-temperature toughness, and good ventilation for airline safety.
Material
- PP + Impact Modifier
- High strength, impact resistant
- Low temp toughness: -20°C
- UV stabilized
Mold

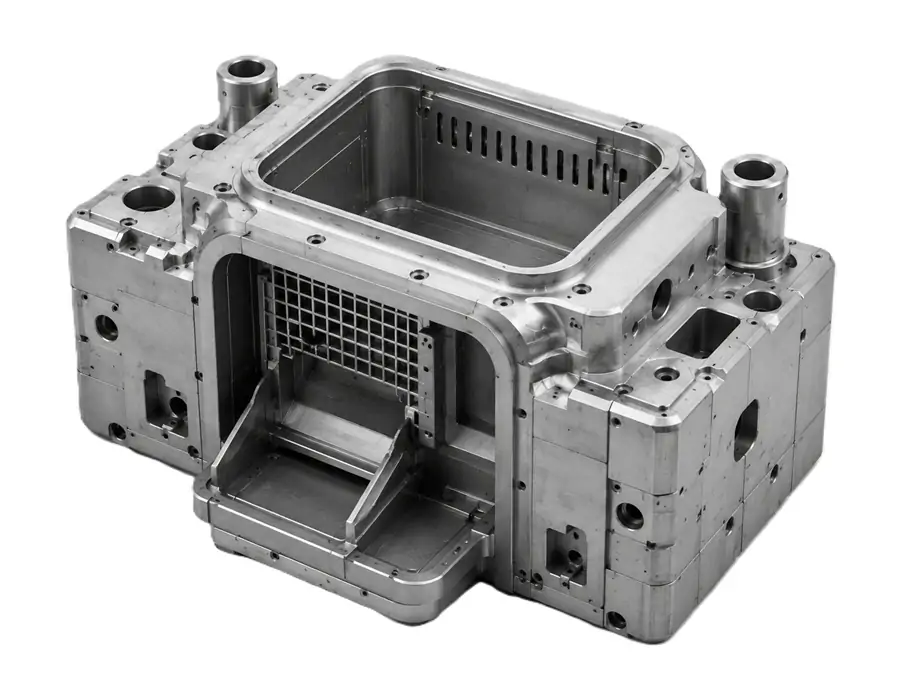

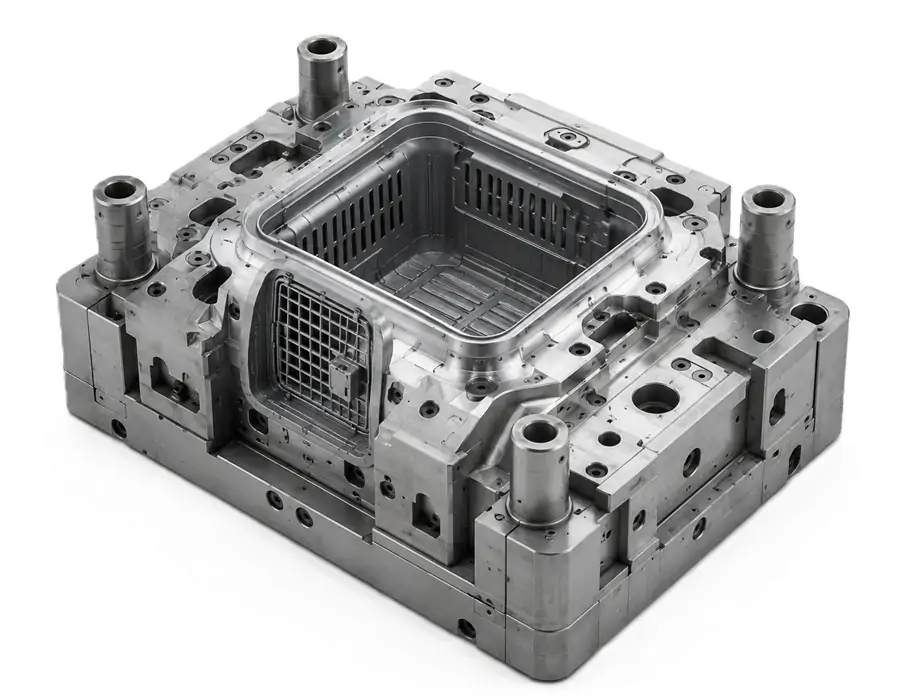

- Large complex structure mold
- Multi-slide & lifter design
- Precision: ±0.05mm
- Mold life: ≥500K cycles
Injection
- High-tonnage injection
- Machine: 1380T
- Injection pressure: 1200bar
- Cycle time: 50-60s
Key Results
Impact Strength +35%
Load Capacity ≥45kg
Customer Satisfaction 98%
02 / 05
Automatic Pet Feeder Housing
Food-Grade, Elegant Appearance
The feeder housing requires food-grade safety, high-gloss appearance, easy cleaning, and durable construction.
Material

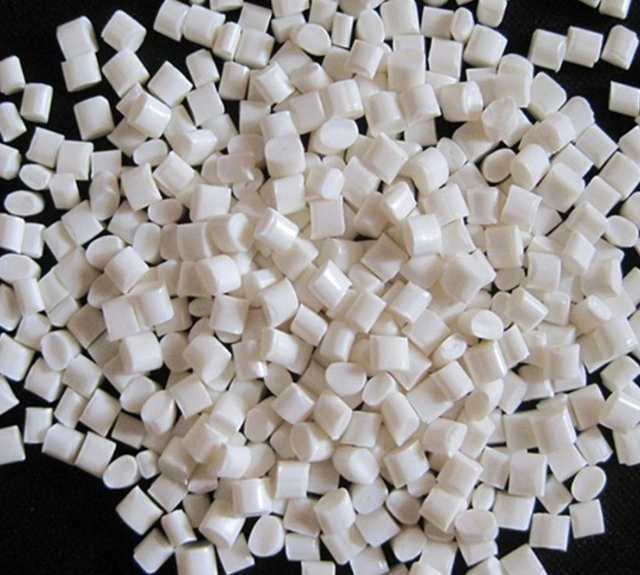

- ABS Food Grade
- High gloss, easy to clean
- FDA & LFGB compliant
- Scratch resistant
Mold
- High-gloss mirror mold
- Precision: ±0.02mm
- Mirror polish: SPI A2
- Mold life: ≥800K cycles
Injection
- High-gloss mark-free molding
- Machine: 650T
- Mold temp: 60-80°C
- Cycle time: 30-35s
Key Results
Gloss Level >90GU
Dimensional Precision ±0.05mm
Defect Rate <0.3%
03 / 05
Cat Litter Box
Antibacterial, Odor-Resistant, Easy to Clean
The litter box demands antibacterial properties, odor resistance, easy cleaning, and scratch resistance for long-term use.
Material

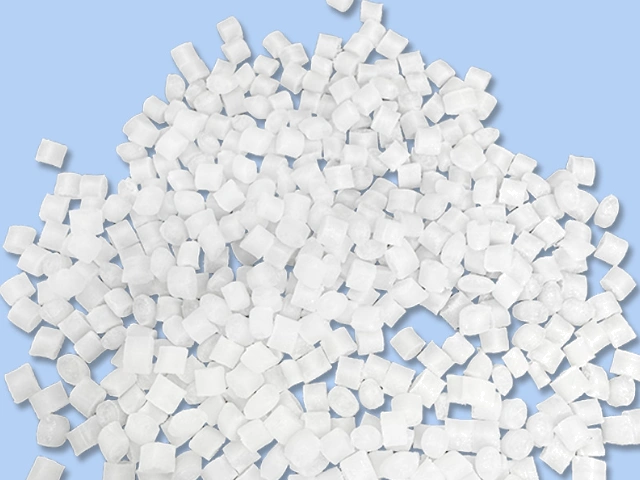

- PP + Antibacterial Masterbatch
- Antibacterial rate >99%
- Corrosion & scratch resistant
- RoHS compliant
Mold

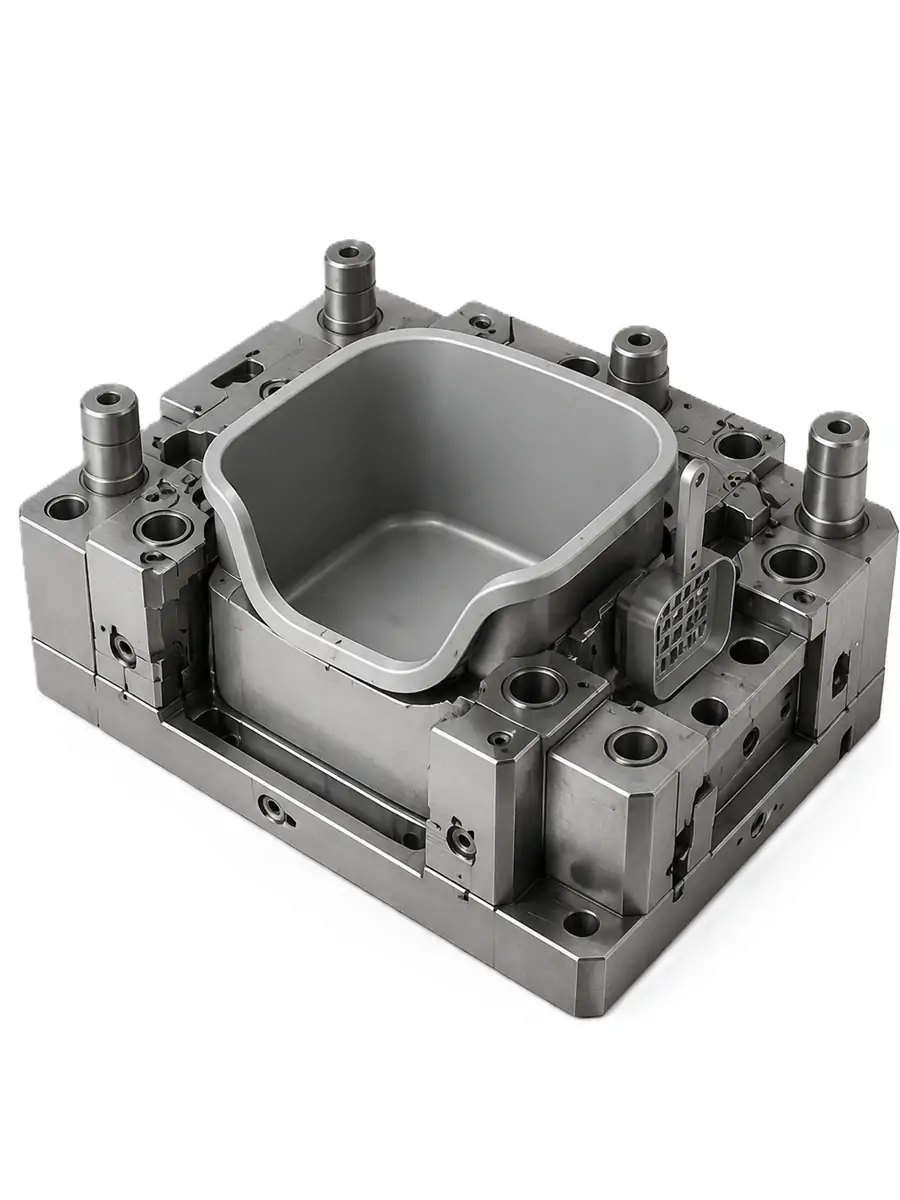

- Multi-cavity sub-gate mold
- Undercut slider mechanism
- Precision: ±0.03mm
- Mold life: ≥600K cycles
Injection
- Precision injection molding
- Machine: 980T
- Injection pressure: 1100bar
- Cycle time: 40-48s
Key Results
Antibacterial Rate >99%
Acid Test >5000x
Customer Repeat Rate ≥95%
04 / 05
Pet Water Fountain Housing
Waterproof, Quiet, Safe
The water fountain requires waterproof sealing, quiet pump operation, food-grade safety, and reliable electrical insulation.
Material
- PC+ABS
- High toughness, heat resistant
- Food-grade, BPA-free
- RoHS & REACH compliant
Mold

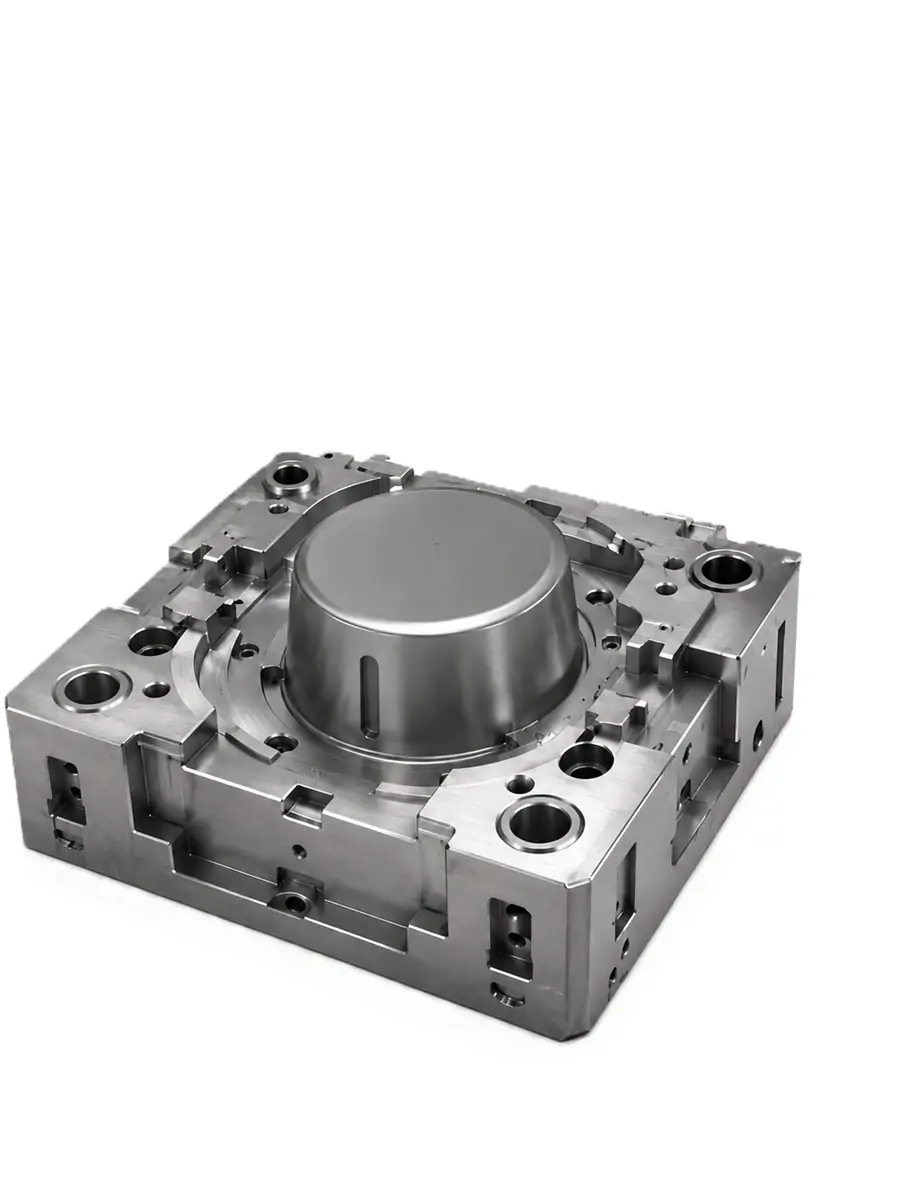

- Sealed structure mold
- Precision fit design
- Precision: ±0.02mm
- Mold life: ≥1M cycles
Injection
- Precision injection molding
- Machine: 580T
- Mold temp: 50-70°C
- Cycle time: 25s
Key Results
Waterproof Rating IPX8
Noise Level ≤30dB
Defect Rate <0.2%
05 / 05
Pet Toy Ball
Bite-Resistant, Elastic, Non-Toxic
The pet toy ball requires high elasticity, bite and tear resistance, non-toxic materials, and bright colorability.
Material

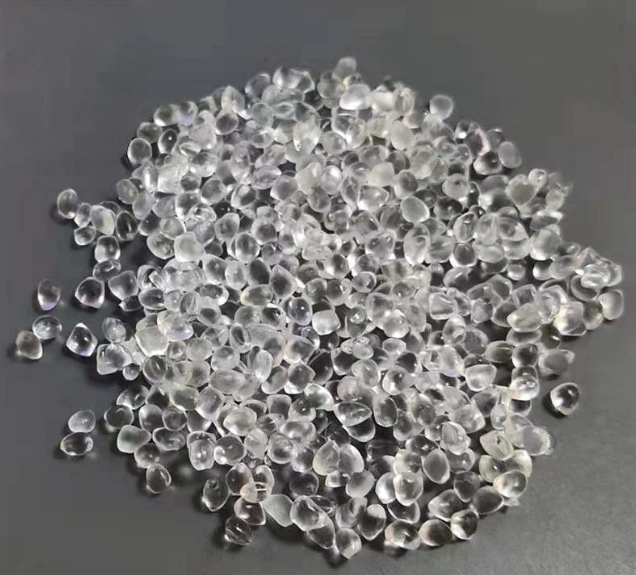

- TPR Food Grade
- High elasticity, tear resistant
- FDA & EN71 compliant
- Non-toxic, non-BPA
Mold

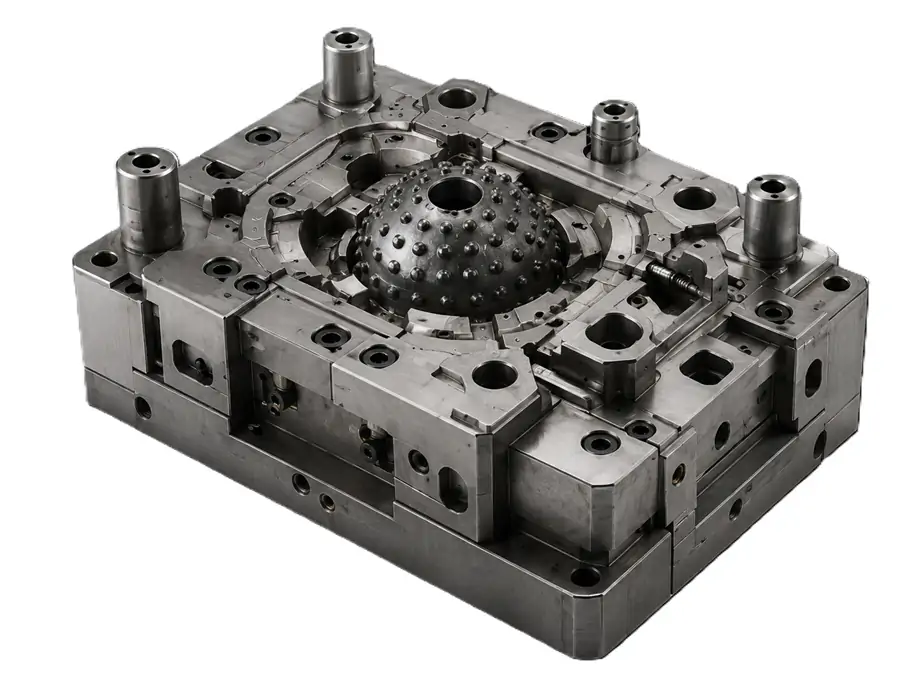

- Two-shot injection mold
- Precision fit design
- Precision: ±0.02mm
- Mold life: ≥800K cycles
Injection
- Two-shot injection process
- Machine: 350T
- Mold temp: 40-60°C
- Cycle time: 18s
Key Results
Bite Test >2000x
Tear Strength >25N/mm
Customer Rating 99%
Our Advantages
Application Value
- Enhance Product Safety & Reliability
- Optimize Overall Product Performance
- Shorten Development Cycles
- Meet Global Certification Standards
Professional · Focused · Reliable
Providing high-quality plastic component solutions for the global pet supplies industry
Ready to Start Your Project?
From concept to finished product — our engineering team is ready to discuss your requirements and provide a tailored solution.
Request a Quote
